Batteryguard XL lithium-ion safe

Professional model battery safe tested with lithium-ion batteries and offers proven safety

Prevent lithium-ion battery fires

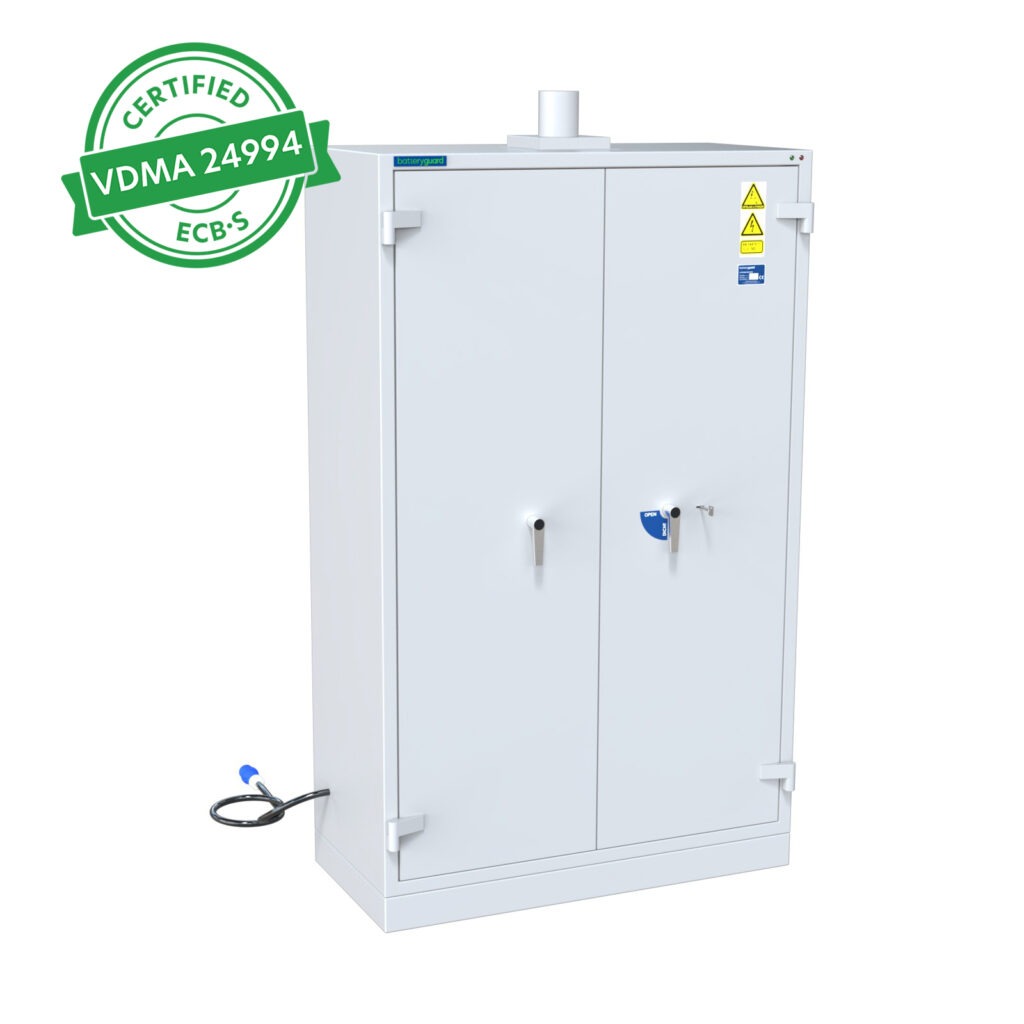

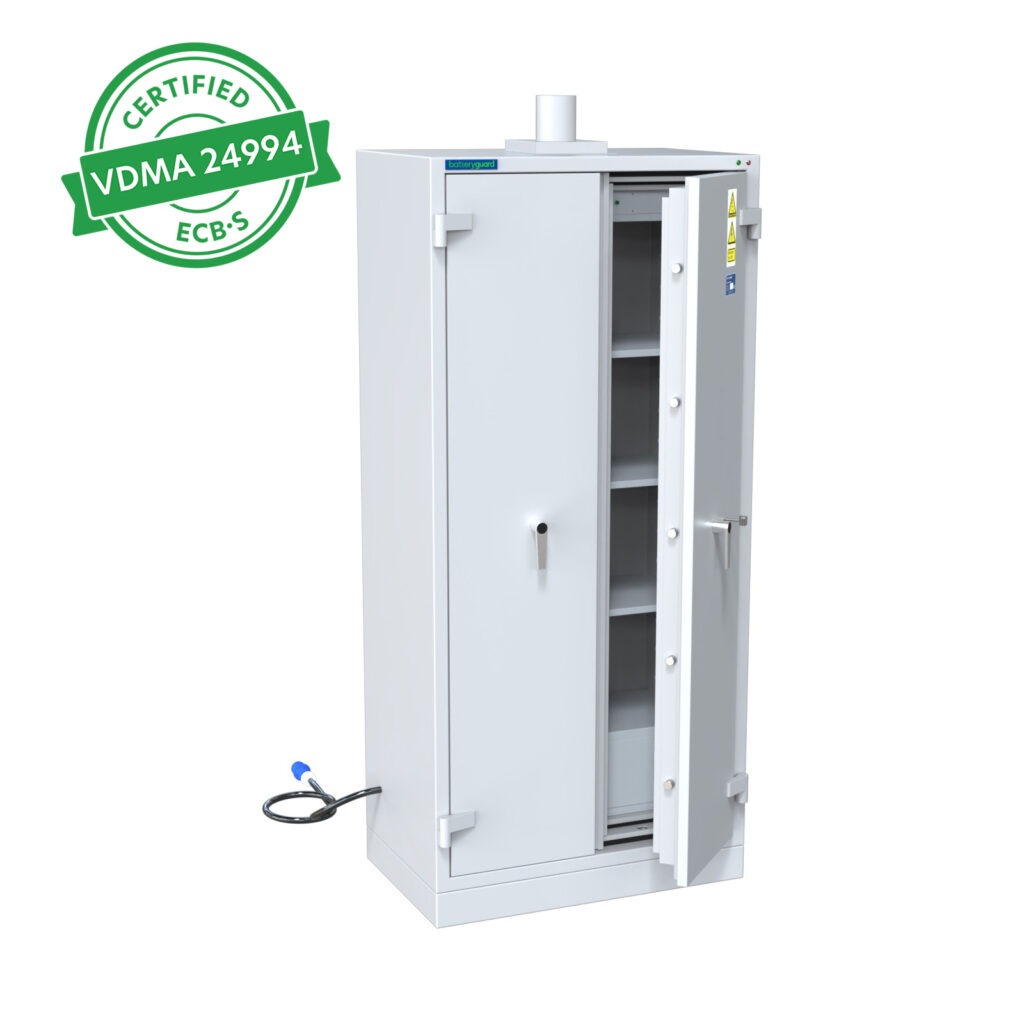

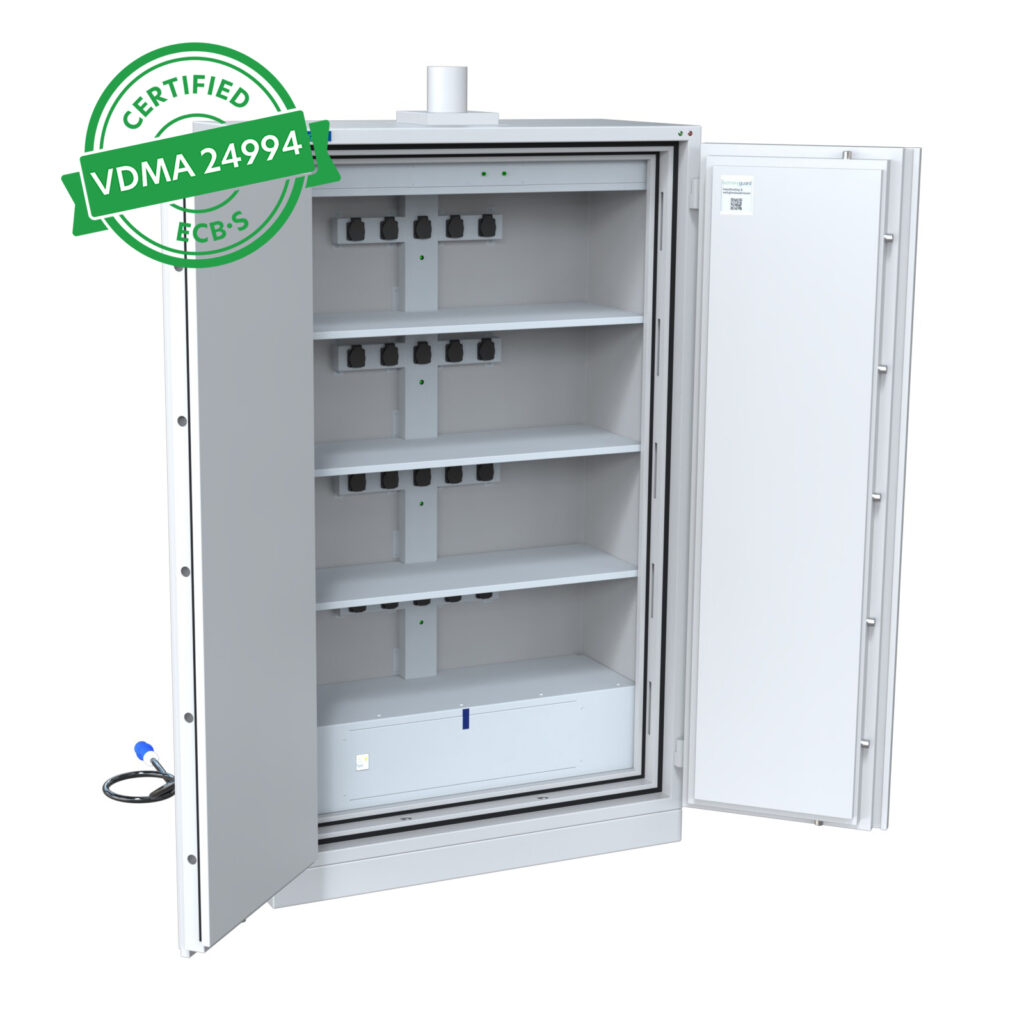

Batteryguard XL lithium-ion safe

Standard options model XL

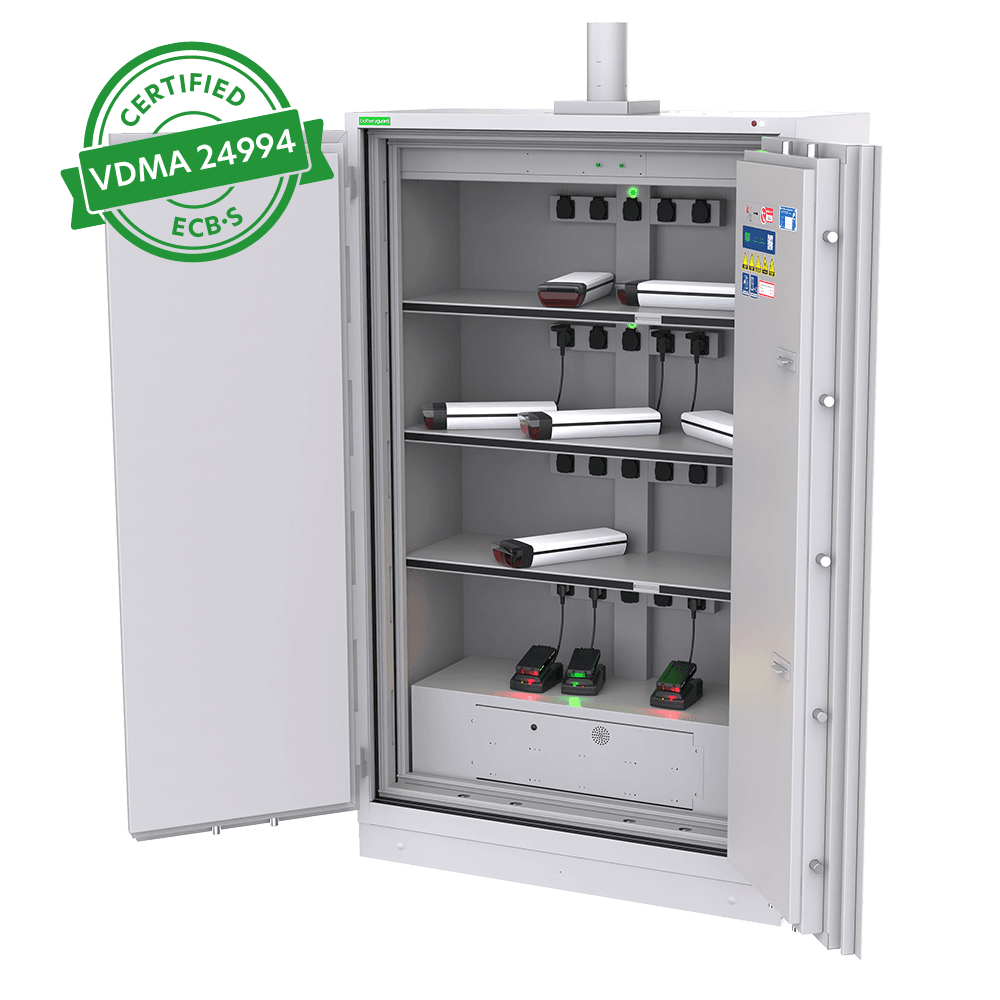

Batteryguard-Burton Security-230v-g-vdma

Model	External dimensions HxWxD	Internal dimensions HxWxD	Number of power points	Weight	Shelves	Volume
Batteryguard XL 195/16 23OV	2050 x940x585 mm	1400x800x390 mm	16	610 kg	4	553 liter
Batteryguard XL 195/20 23OV	2050x1250x585 mm	1400x1110x390 mm	20	710 kg	4	773 liter
Batteryguard XL 195/20 400V	2050x1250x585 mm	1400x1110x390 mm	20	710 kg	4	773 liter

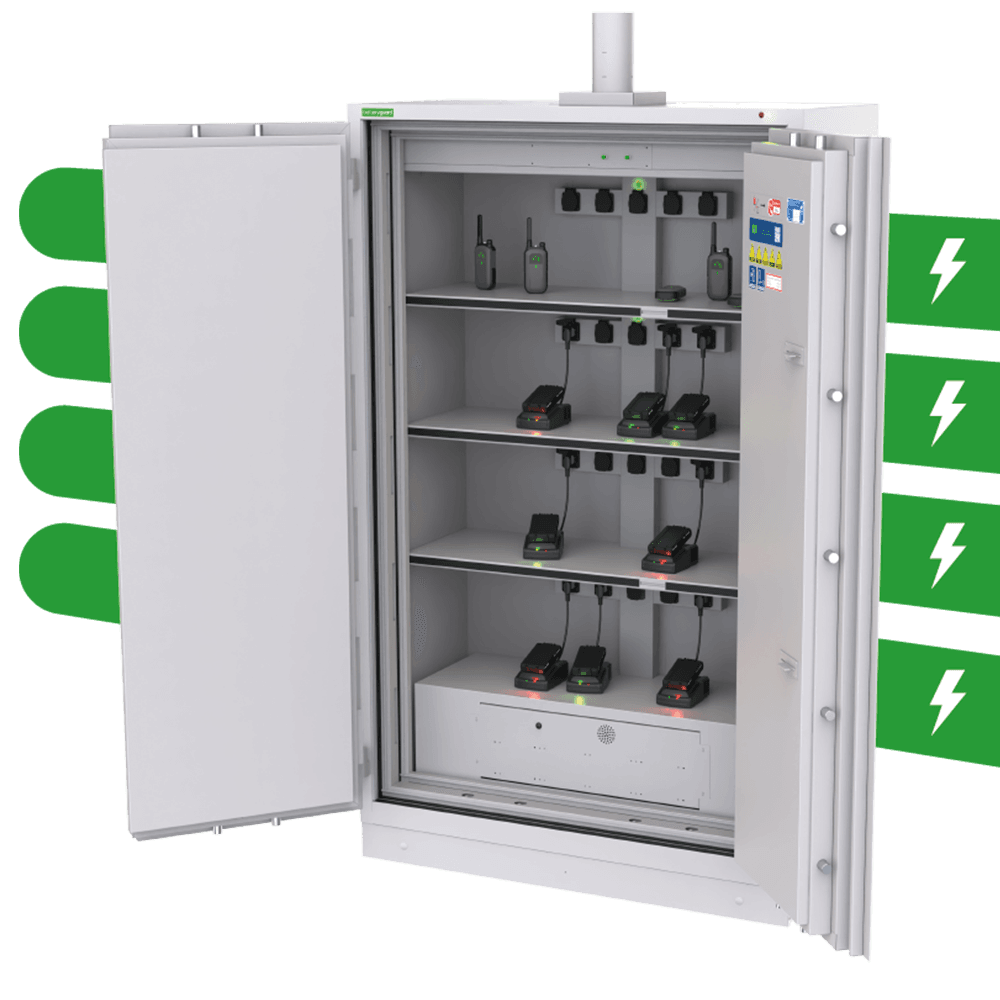

Batteryguard XL 23OV continuous charging

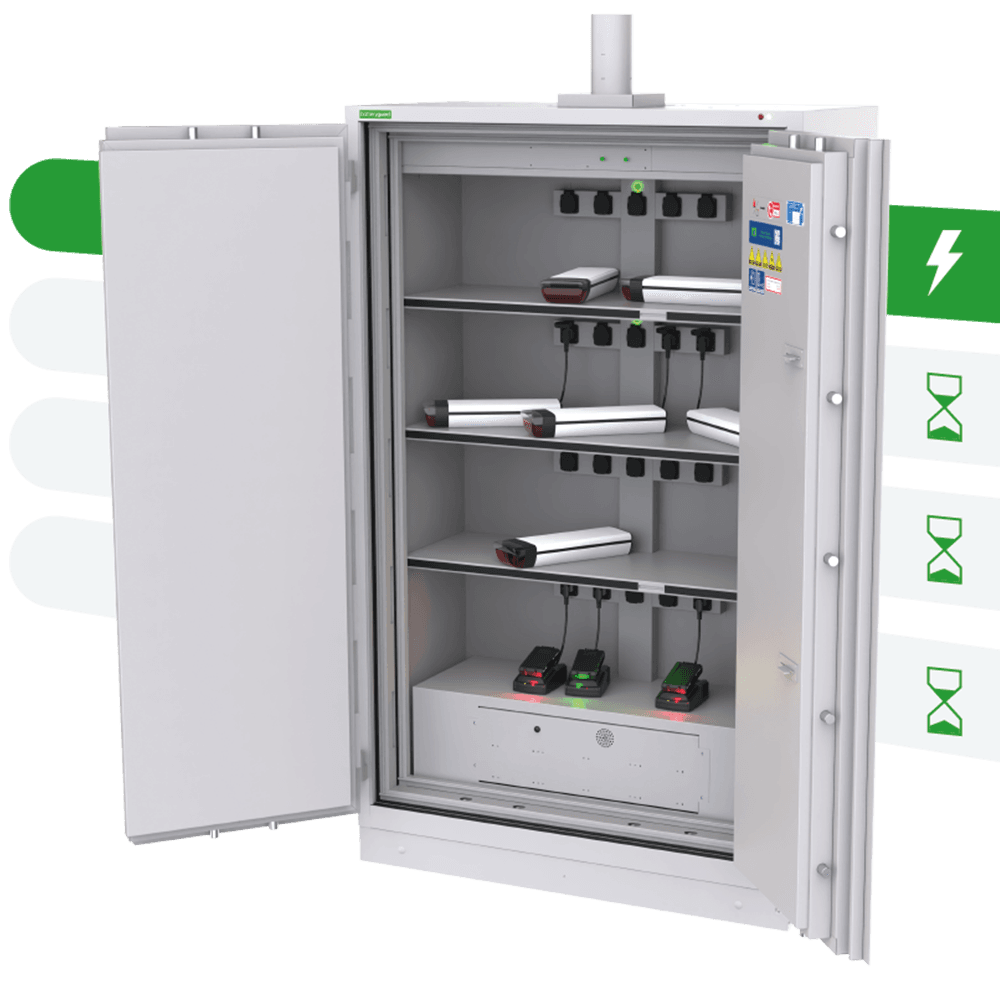

Batteryguard XL 23OV sequential charging

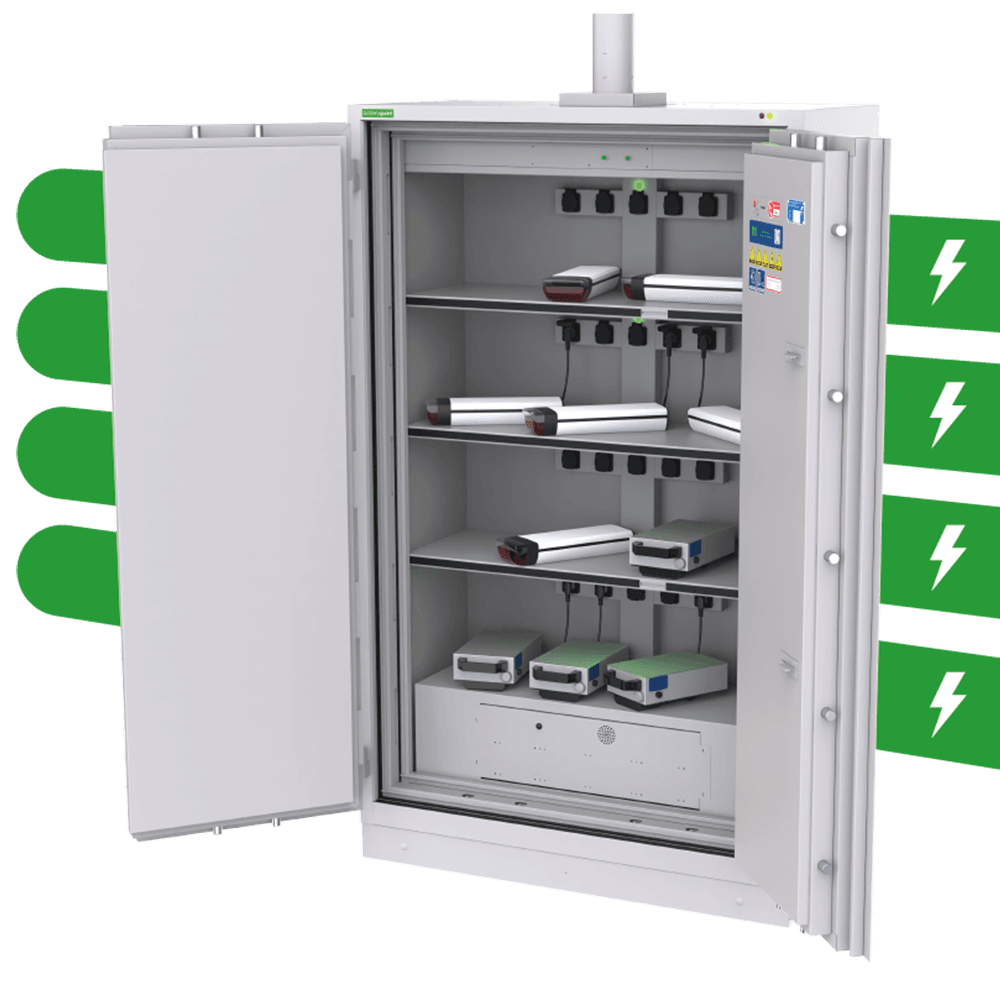

Batteryguard XL 400V continuous charging

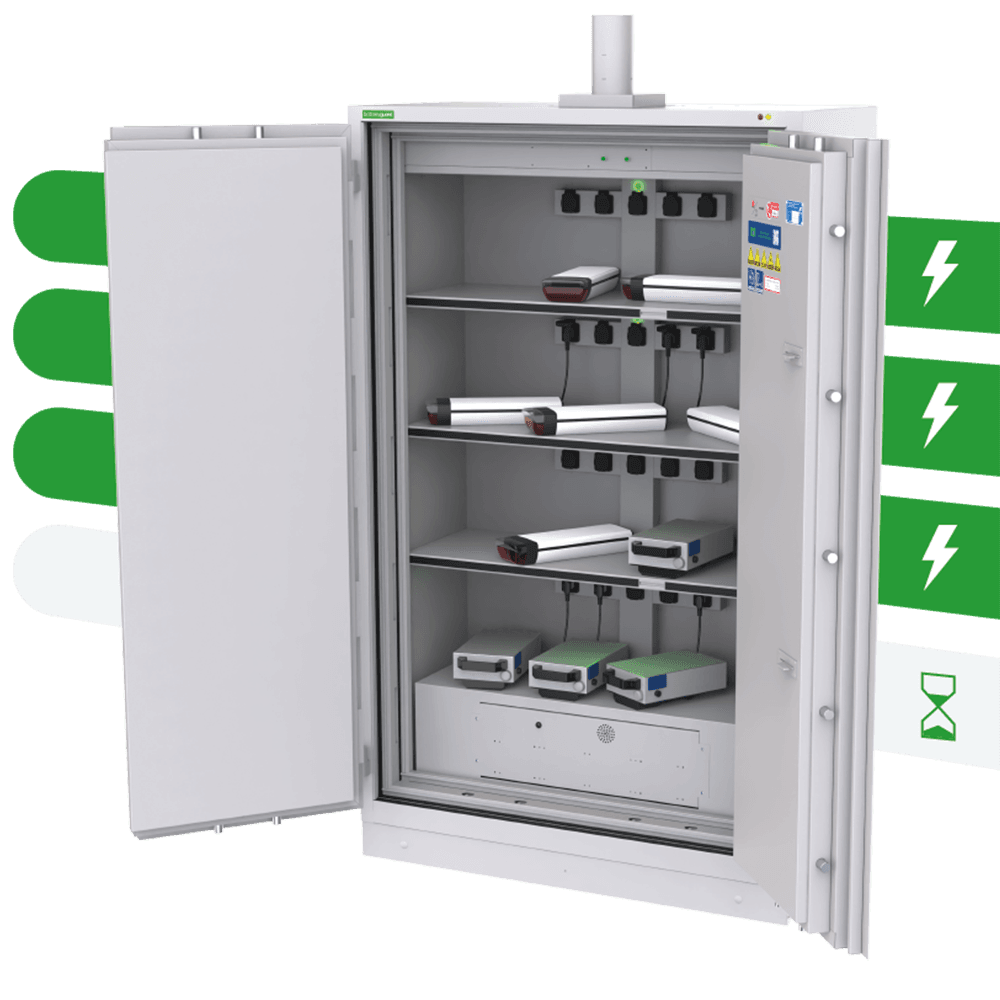

Batteryguard XL 400V continuous and sequential charging

Batteryguard XL Extra options XL

400 volt power supply connection

Do you have a 400 volt connection in your meter box?

Then choose the Batteryguard XL lithium-ion battery safe with a power supply connection. The big advantage of this is that you can charge all batteries simultaneously in the safe.

Fully automatic charging system

To facilitate this, we have placed a fully automatic charging system in the safe.

This system charges one shelf of batteries at a time. A green indicator light shows you which level is currently being charged. This charging process is set at two-hour intervals, meaning that after every two hours, a different set of batteries is up for charging.

Lockable locker compartments in the lithium-ion battery safe

The Batteryguard lithium-ion battery safe can also be used as a central charging service for e-bike batteries in hotels, holiday parks, apartment complexes, schools, etc.

Guests of hotels and holiday parks are increasingly bringing their own e-bikes on holiday. If they then charge the battery in their hotel room or holiday home, this poses significant risks.

A central charging service at the reception offers a solution. Here, bike batteries are safely charged in a separate locked locker compartment in a special lithium-ion battery safe. This service not only guarantees safety but also provides convenience for guests: the battery is safely charged, they always get their own battery back and they can enjoy a carefree stay.

As the manufacturer of Batteryguard, we customise the layout of our lithium-ion battery safes for you.

Do you have any questions?
Feel free to contact our expert team.

Modular construction

Our lithium-ion battery safe stands out due to its modular construction. This means you are not tied to a fixed size or capacity. If you currently have a limited number of batteries to store, start with a basic safe.

As your needs grow, you can easily add extra modules. The construction is designed so that expansion is seamless and hassle-free, making your safe infinitely scalable.

Self-closing doors in case of fire

The Batteryguard battery lithium-ion safe alerts you with a loud alarm if you leave the doors of the safe open for more than two minutes. Suppose a battery in the safe catches fire, then you can only keep the fire inside the safe if the doors are closed. This is very important!

For maximum safety, choose the option of self-closing doors. If one of the batteries overheats and the safe doors are open, the doors will automatically close, even if you are not present at the safe!

Electronic coded lock on the door

You lock the Batteryguard safe with a key, but you can also opt to have it fitted with an electronic coded lock.

You then open the battery safe with a self-chosen code. When several people have access to the safe, you can set an individual code for each of them.

Continuous charging system ElectrIQ explained

Even when using a standard socket, the ElectrIQ charging system ensures safe charging. This battery safe features a continuous charging mechanism that allows all levels to charge at once, as long as the total current stays below 16 amperes. No manual input is required—the safe handles everything automatically.

This is how the ElectrIQ smart charging system works with sequential charging

Thanks to the ElectrIQ charging system, this battery safe charges in intelligent stages. It begins with one level and only moves to the next once the first group of batteries is fully charged. The transition isn’t time-based but is triggered by the actual charge level.
