Cerberus Vault Doors - Burton Security

Cerberus Vaults Doors

Protection against physical attack tools and ballistic weapons

All Cerberus doors come with 2 locks as standard and a third can be ordered on request.

Vault Doors Models

Grade II to XIII EX CD

Standard

The standard version of the Cerberus vault door is available across all resistance grades

Energency Door

Cerberus emergency doors are offered in resitance grades II – VIII EXCD

Standard with Integrated Energency Door

The standard versions with an integrated emergency door are available up to Grade VIII EX CD

Biovault, Orthrus and Cerberus vault doors can be supplied either as a stand alone item, designed to be set into your own cast vault walls or, as part of a full vault room from Burton Security. When part of a full vault room, they will offer the same level of security protection as the main vault. We offer a wide range of options and customisations. Standard size doors represent the best value and shortest production times. But any size can be produced within the minimum and maximum clear opening dimensions listed in the table. Even larger doors can be produced on special request.

Model	Resistance grade VdS \| ECB·S	Min/Max * Height (mm)	Min/Max* Width (mm)	Standard Size Clear passage (h x w, mm)	Door thickness (mm)	Weight (approx. kg)
Cerberus 2	Grade II	1810 – 3950	510 – 1950	1960 x 910	160	850
Cerberus 2 ED	Grade II	1810 – 3950	510 – 1950	1068 x 514	160	340
Cerberus 2 IED	Grade II	1810 – 3950	510 – 1950	1960 x 910	160	900
Cerberus 3	Grade III	1810 – 3950	510 – 1950	1960 x 910	160	880
Cerberus 3 ED	Grade III	1810 – 3950	510 – 1950	1068 x 514	160	360
Cerberus 3 IED	Grade III	1810 – 3950	510 – 1950	1960 x 910	160	930
Cerberus 4	Grade IV	1810 – 3950	510 – 1950	1960 x 910	160	880
Cerberus 4 ED	Grade IV	1810 – 3950	510 – 1950	1068 x 514	160	360
Cerberus 4 IED	Grade IV	1810 – 3950	510 – 1950	1960 x 910	160	930
Cerberus 5	Grade V	1810 – 3950	510 – 1950	1960 x 910	160	880
Cerberus 5 ED	Grade V	1810 – 3950	510 – 1950	1068 x 514	160	360
Cerberus 5 IED	Grade V	1810 – 3950	510 – 1950	1960 x 910	160	930
Cerberus 6 Biovault/Othrus	Grade VI	1810 – 3950	510 – 1950	1960 x 910	160	900
Cerberus 6 ED/Biovault/Orthurs	Grade VI	1810 – 3950	510 – 1950	1068 x 514	160	390
Cerberus 8	Grade VIII EX CD	1810 – 3950	510 – 1950	1960 x 910	225	1410
Cerberus 8 ED	Grade VIII EX CD	1810 – 3950	510 – 1950	1068 x 514	225	605
Cerberus 8 IED	Grade VIII EX CD	1810 – 3950	510 – 1950	1960 x 1000	150	1520
Cerberus 10	Grade X EX CD	1810 – 3950	510 – 1950	1960 x 910	285	1970
Cerberus 11	Grade XI EX CD	1810 – 2500	510-1400	1960 x 910	365	2715
Cerberus 12	Grade XII EX CD	1810 – 2500	510-1400	1960 x 910	365	2805
Cerberus 13	Grade XIII EX CD	1810 – 2500	510-1400	1960 x 921	365	4300

ED: Emergency door

IED: Integrated emergency door

CD: Additional protection against attacks with core drills

EX: Additional protection against attacks with explosives

In addition to the speciﬁed door thickness, 60mm must be allowed for Hinges, handles & locks.

Security & Features of Vault Doors

All Burton Security vault doors come as standard with an alarm system connection and a primed ﬁnish. Additional custom features are available upon request.

Models	Biovault, Orthurs Cerberus Grade II-V	Cerberus GradeVI-XIII
Prepared for alarm system connection
Primed surface
Additional protection against explosive attacks (EX)
Switch set for door monitoring
Switch set for door monitoring
Door Stop – Floor or wall mounted. Also available as a lockable version
Stainless steel entrance step
Factory-applied ﬁnal coating in any standard RAL colour
Internal panic emergency lock
Dual-side operability (electronic lock)
Custom sizes available

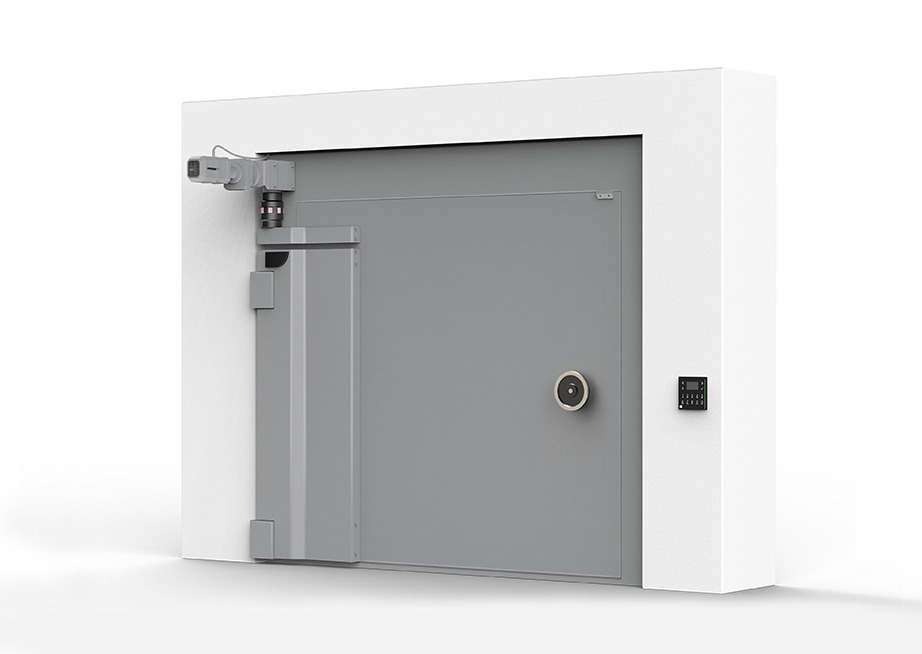

Automated vault doors (opening and closing by motor)
Special plating of the handle & boltwork in polished chrome, brass brass or antique bronze
Customisable back pan with customer logo

Day Gates

Day gates for vaults serve as additional security when the vault door is open and prevent unauthorized access to the vault room.

Burton Security day doors are available in different versions. The standard version has vertical bars and a regular hinged operation. Options include an access protection plate and a fully glazed version with customised graphics. Locking options include key or electric strike and a sliding operation is also possible on request.

Equipment	Gate Door	Gate Door with Handle Protection	Glass Door
1 double cylinder lock with 3 keys
Electric door opener
Hydraulic door closer
Fittings – outside knob / inside lever handle
Fittings – outside knob / inside knob
RAL ﬁnish of your choice
Access protection plate
Sliding operation
Perspex cover
Metal mesh cover

Standard Locks

for Vault Doors
